Why Hardware Certification Matters

A fire door is only as effective as its complete assembly. Fitting non-certified or incompatible hardware – even a single uncertified hinge – can void the entire door assembly’s fire rating and create a legal liability for the building owner and installer.

All Hongli Firedoor hardware is tested as part of our certified door assemblies. When you order an Hongli door set, all hardware supplied is compatible with and part of the tested assembly certificate. We also supply hardware for replacement or for third-party certified door sets – please contact us with the door assembly certificate reference to confirm compatibility.

Hardware Range

Fire-Rated Butt Hinges

Supplied as 3-hinge sets (required for fire door assemblies to prevent distortion under heat stress). Stainless steel or satin chrome finish. Ball-bearing pivot for smooth, low-friction operation over the long term. Tested to 100,000 open/close cycles.

Material	Stainless steel 304 / cold-rolled steel
Finish	Satin stainless, satin chrome, brushed nickel
Size	100 × 75 mm, 100 × 100 mm
Rated Load	Up to 120 kg door weight
Compatible Ratings	FD30–FD120 assemblies

Overhead Door Closers

Hydraulic overhead closers with adjustable closing force (EN 2–EN 6) and adjustable latch action. Essential for fire doors – ensures the door closes fully and latches on every use, maintaining the fire seal. Back-check option prevents door damage from slamming. Hold-open arm option available (non-fire-rated; for use with electromagnetic hold-open devices).

Closing Force	EN 2 – EN 6 (adjustable)
Backcheck	Available
Delayed Action	Available
Arm Options	Standard arm, parallel arm, slide channel arm
Compatible Door Weight	Up to 120 kg
Finish	Silver, gold, matt black, satin chrome

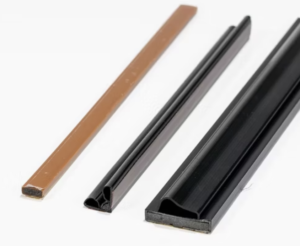

Intumescent Smoke Seals

Intumescent seals are fitted to the door leaf or frame rebate and expand when exposed to heat – sealing the gap between leaf and frame to prevent the passage of hot smoke. Critical for maintaining the fire rating. We supply perimeter door seals (all four sides) and threshold drop-down seals for the base of the door.

ype	Intumescent strip with smoke brush
Activation Temperature	~150°C
Expansion Ratio	Up to 10× original thickness
Material	Intumescent graphite compound in aluminium carrier
Sizes	10 × 4 mm, 15 × 4 mm (custom available)
Threshold Seal	Automatic drop-down seal available

Mortice Locks & Latches

Fire doors must positively latch on closing – a deadbolt or nightlatch alone is not sufficient. We supply mortice deadbolts with latch (case size to suit door thickness) in keyed-alike batches for large projects. Bathroom/WC turn-and-release variants available. All locks are supplied as part of the tested door assembly.

Case Options	55 mm, 60 mm, 65 mm backset
Cylinder Type	Euro cylinder (keyed alike batches available)
Variants	Deadbolt + latch, bathroom turn, classroom function
Finish	Satin stainless, satin chrome, gold, matt black

Ordering Hardware

Hardware is supplied as standard as part of complete Hongli door sets. To order hardware separately – for replacement, for specification into third-party door assemblies, or for a refurbishment project – please contact us with the following information:

• The fire door assembly certificate reference (if fitting to a certified third-party door)
• Door leaf weight and dimensions
• Quantities and finish requirements
• Whether the door is an emergency exit route (panic hardware required)
